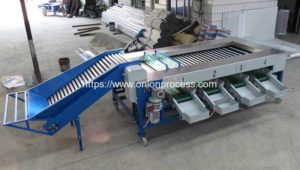

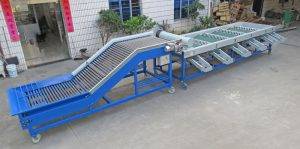

Automatic Onion Size Sorter Grader Machine is used for grading onions ,potatoes , fruits , Tianma and other fruit and vegetable. The machine uses high-quality 304 stainless steel , equipment beautiful appearance , easy to install , easy to operate , environmental health , safety and reliability , high efficiency, is the classification device of choice
This equipment is mainly composed of the drum and the frame body composition , the inner cylinder with a screw feeding device , speed grade by the inverter control , adjustable speed .
Features of Onion Size Grader Machine
1. Selection of rolling rail (stainless steel tube,engineering plastic tube etc.)
2. Spraying device and water collection through can be designed according to requirements.
3. Waste fruit collecting and conveying device can be designed according to requirements
4. Dimensions can be designed according to requirements
Specification of Onion Size Grader Machine
Model | Power | Outline Dimension(mm) | Weight | Capacity |
RM-G3600 | 0.75kw | 3600x1100x1500 | 280kg | 1-2T/h |
RM-G4600 | 1.1kw | 4600x1200x1600 | 360kg | 2-3T/h |
RM-G5600 | 1.5kw | 5600*1200*1600 | 500kg | 4-5t/h |
Company Profile
Adhering to the principle of managing scientifically and honesty and credit,our factory has passed ISO9001-2000 quality system certification. Now, Our factory can provide onion dry cleaning machine, onion water washing machine, onion mesh bag packing machine, onion peeling machine, onion root cutting machine, onion cutting machine, onion dryer machine, onion powder production line, onion powder bottle filling sealing machine.
Our onion processing products have passed with CE,ISO and SGS Certificates and has been widely sold all over the world.
